    See. Know. Act. Protect. Comply.

    One live 3D model of your facility: video analytics on the cameras you own, every tagged person and asset located, robots and drones tasked from the same picture, drones overhead tracked, and a person deciding every action. Each part says what it does today and carries its status. Screenshots are real captures on built-in demo data.

    Request a briefingRead the common questions

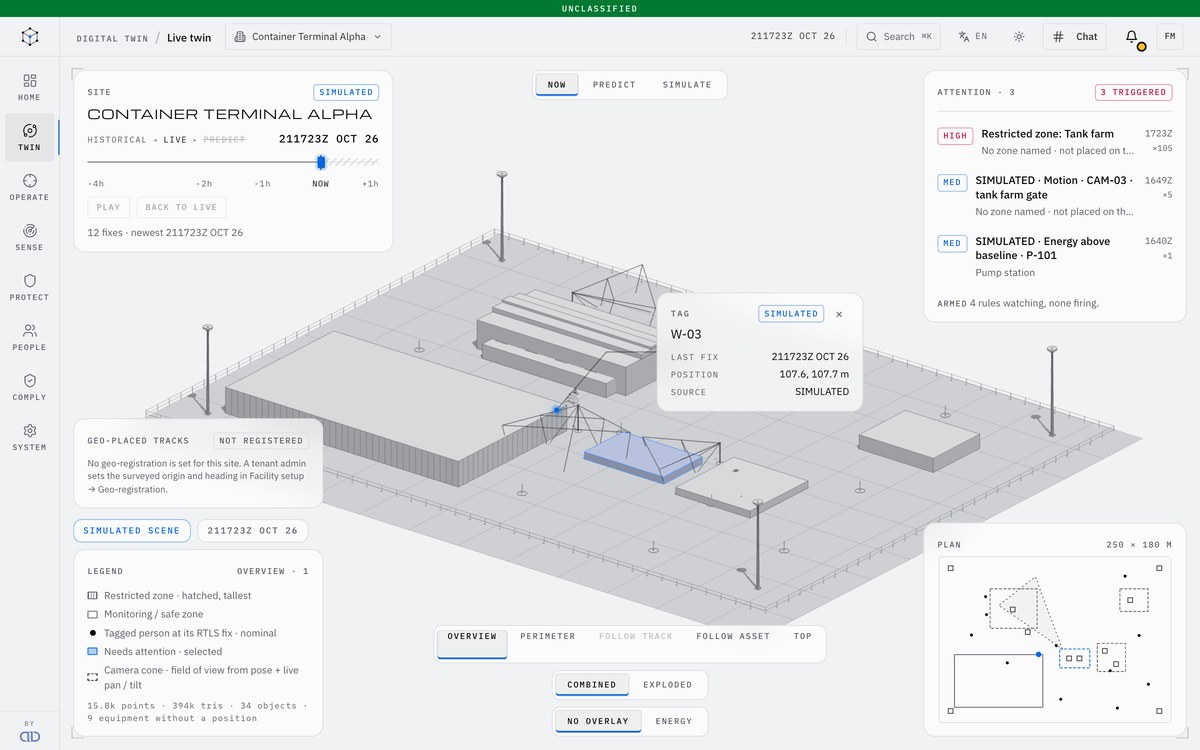

    The SiteOS twin on demo data: the site's 3D model with its zones, cameras, tags and a robot, the attention queue, the time scrubber and the plan.
    Real SiteOS screen · simulated data

    U1 · See

    Available

    See

    The CCTV cameras you already own become sensors: video analytics on your own servers, alert rules on what they see, and radar, RF and vessel feeds on the same picture.

    What you do with it

    • Run detection on the cameras you have, on your own servers
    • See one track, not five alarms
    • Know what is in the air and on the water
    Simulated camera view from a warehouse wall over a loading apron: a worker in a hard hat and high-visibility vest, and a forklift.
    Simulated scene · what a wall camera over the loading apron sees; detections are classes, never identities

    Modules

    • Camera analytics

      RTSP ingest with on-premise object detection models. Classes, never identities: there is no face recognition.

      Available

    • Radar and air picture

      ASTERIX Cat-048 and Cat-021 decoders, Cursor on Target for TAK.

      Available

    • Vessel traffic

      AIS from NMEA feeds, placed on the same picture.

      Available

    U2 · Know

    Available

    Know

    Every tagged person, vehicle and asset on a live 3D model of the site (RTLS): buildings and zones, who and what is where now, and where they were.

    What you do with it

    • See the whole site in 3D or on the plan
    • Follow tracked people, vehicles and equipment
    • Scrub back through a shift to see what happened
    The SiteOS twin following one location tag, W-03, on demo data: the tag's callout with its last fix and position, other tags as figures around it, a robot and a camera with its field of view; the attention queue and the plan beside it.
    Twin, following a tag · demo data, simulated; people shown by tag id · Captured 21 Oct 2026

    Modules

    • 3D and plan views

      Buildings, zones and assets in one model, in the browser.

      Available

    • Location tags

      A position API for any tag system, plus UWB and RFID vendor adapters that have run on simulated positions only.

      In progress

    • Replay

      Replay tracked positions over a chosen time window.

      Available

    • SOS and evacuation roll call

      A tag's SOS opens a man-down alert with a response timer, escalation and suggested responders; a muster counts tags at the assembly points. Run on simulated tags so far: your tag system has to send these events.

      In progress

    • 3D model of the site

      The lit 3D model shown on this site, with an exploded view and a plain clay mode.

      Available

    U3 · Act

    In progress

    Act

    Security robots and drones tasked from the same model, inside authorisations a person approved: plan, rehearse, supervise and stop.

    What you do with it

    • Plan a patrol and check it is feasible
    • Rehearse it on the simulator
    • Stop an aircraft from the console
    SiteOS C2 globe with no aircraft bound. The aircraft panel explains how to bind an aircraft or start a rehearsal.
    C2 globe, empty: no aircraft bound and no recorded flight yet · Captured 21 Oct 2026

    Modules

    • Mission planning and rehearsal

      Feasibility check, schedule and a labelled rehearsal simulator.

      Available

    • Aircraft control

      Take off, return, go to, pause and emergency stop through a dock vendor's cloud interface. Tested against a simulated transport; no recorded flight yet.

      In progress

    • Ground robots

      Fleet records for quadruped and tracked robots: readiness, dock state, battery cycles, maintenance due. No live robot telemetry transport yet.

      In progress

    • STANAG 4586 interface

      A subset of data link interface messages, as an interoperability spike.

      In progress

    U4 · Protect

    Available

    Protect

    Drone detection for the facility (counter-UAS), the perimeter and the airspace on one picture, with a person in charge of every engagement.

    What you do with it

    • Detect a drone and see it cross the fence
    • Raise the right alert to the right people
    • Keep engagement decisions with authorised people
    SiteOS alert rules: idle equipment, forklift speed, a restricted zone and PPE compliance, with severity and status.
    Alert rules · demo data, simulated · Captured 21 Oct 2026

    Modules

    • Counter-UAS detection and fusion

      Detection and track fusion only. SiteOS does not drive effectors.

      Available

    • Alert rules and incidents

      Rules on zones, people, equipment and sensors; incident records.

      Available

    • Engagement release controls

      Two-person release and a rules-of-engagement gate on every engagement.

      Available

    U5 · Comply

    Available

    Comply

    Evidence of who did what and when, the export-control markings on your data, and the clocks your regulator sets.

    What you do with it

    • Show an auditor an untampered record
    • Keep controlled data with cleared people
    • Meet incident-reporting deadlines
    Illustration, not a screenshot · each audit entry carries the hash of the one before it

    Modules

    • Tamper-evident audit chain

      Privileged and administrative actions, SHA-256 hash-chained and verifiable.

      Available

    • Export-control markings

      ITAR, EAR, NOFORN and REL TO caveats enforced when data is read.

      Available

    • NIS2 and CER reporting clocks

      Art. 23 deadlines with the evidence attached.

      Planned

    Integrations

    Interfaces and their evidence

    Open, published interfaces rather than a closed plug-in store. Each row says how far it has been tested.

    Simulated
    7of 15 interfaces

    Runs against a software simulator of the device or feed.

    Protocol-tested
    10of 15 interfaces

    Encoder or decoder covered by automated tests against the published message format. Not yet run against the vendor's hardware.

    Hardware-proven
    0of 15 interfaces

    Recorded, dated test against real hardware, with the vendor's consent to say so.

    Integrations by evidence tier
    Sensor or systemInterfaceSimulatedProtocol-testedHardware-provenNotes
    Air surveillance radarASTERIX Cat-048, Cat-021YesYesNoDecoder tests. Cat-034 is in the SiteOS Defense suite and being merged.
    Tactical picture (TAK)Cursor on Target, XML over TCP and UDPYesYesNoSend and receive tracks with TAK clients.
    Drone RF detectorVendor adapter over MQTTYesYesNoDetections become tracks on the picture.
    Maritime trafficNMEA 0183 AIS (AIVDM 1, 2, 3, 5, 18, 24)YesYesNoVessel positions and static data.
    Sensor networksSAPIENT, JSON formNoYesNoThe binary encoding of BSI Flex 335 is planned.
    UAS ground controlSTANAG 4586, DLI messages 1, 20, 21, 101NoYesNoAn interoperability spike. No conformance testing has been done.
    Video metadataMISB ST 0601 KLVNoYesNoDecoder tests. Wiring to video ingest is in the SiteOS Defense suite and being merged.
    Tactical data link messagesLink 16 J-series message parserYesYesNoMessage parsing only. No terminal or crypto integration.
    CamerasRTSP ingest, HLS playbackNoYesNoHas run against a live public camera stream.
    Location tagsUWB and RFID vendor adapters, REST position pushYesNoNoSimulated positions. No vendor adapter tests yet.
    Telemetry busMQTTYesYesNoGeneric topics for sensors and devices.
    Industrial controllersOPC UA (read-only), ModbusPlannedAdapter code exists but the client libraries are not shipped, so nothing connects yet.
    Camera controlONVIF, not implementedPlannedNo ONVIF client yet.
    Drone telemetryMAVLink, not implementedPlannedNo MAVLink support yet.
    Drone identificationRemote ID, not implementedPlannedNo Remote ID support yet.

    Hardware-proven: none yet. A hardware test bench is specified and not built. Rows move to that column only with a recorded, dated test and the vendor's consent to name it. If you run one of these sensors, a joint test at your site or ours is the fastest way to get there.

    Common questions

    What buyers ask first

    Short answers, with the same statuses as the rest of this page.

    Does SiteOS work with the cameras we already have?

    Yes. That is where it starts. SiteOS takes RTSP video from the cameras already on your walls, runs object detection on your own servers and places each detection on the 3D model with the camera that saw it. It detects classes, such as a person, a vehicle or a missing hard hat, never identities. There is no face recognition.

    Can it run on our own servers, or air-gapped?

    On your own servers, yes: the backend and web app run as containers with Docker Compose, in your network and with your keys. An air-gapped install bundle and a no-egress mode are built and still in progress. We have not yet recorded an end-to-end air-gapped install, and will publish one when we do.

    Does SiteOS take action on its own?

    No. A person decides every action. Robots and drones act on a person's instruction or inside a standing authorisation a person approved, and an engagement needs two authorised people. SiteOS does not drive effectors and has no drone mitigation function.

    Can SiteOS detect drones over our site?

    It fuses radar (ASTERIX), RF detectors and cameras into one track per object on the model, with alerts to the right team. It detects, tracks and alerts; mitigation stays with the authorities allowed to use it. The interfaces are protocol-tested or simulated today, and none is hardware-proven yet.

    Which RTLS location tags does it support?

    Any tag system that can send positions to the SiteOS position API. The UWB and RFID vendor adapters have run on simulated positions only, so bring us your tag vendor and we will test it with you.

    Which robots and drones can it task?

    Drone missions can be planned and rehearsed today. Aircraft control through a dock vendor's cloud interface is tested against a simulated transport, with no recorded flight yet. Ground robots are fleet records for now: readiness, dock state, battery cycles and maintenance, without live telemetry.

    Is SiteOS certified?

    No. SiteOS holds no security certification and no audit report, and no penetration test has been run. The trust center lists the controls in the code, the gaps we know about and the programmes we have not started.

    Who builds SiteOS?

    ELEVEN22SPX, a defense technology company. SiteOS is developed by ELEVEN22SPX LTD in Cyprus (EU), and ELEVEN22SPX Inc., trading as ELEVEN22SPX USA, runs United States operations.

    See it on your facility

    We show the platform on a model of your own site, with the cameras, tags and interfaces you actually run, and tell you plainly which parts are ready.
